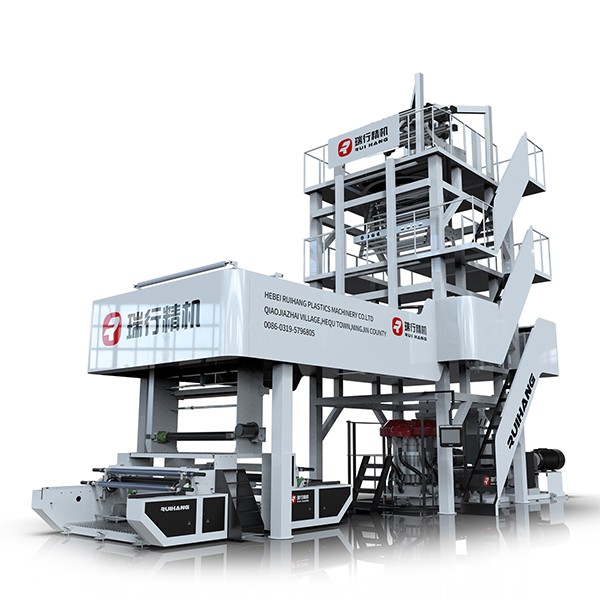

3CMJ-50-55-50-Ruihang high performance upper haul-off rotary frosted film blowing machine

Film Layer:Three to five layer
Thickness of product: 0.02mm ~0.12mm
Material used:LDPE.HDPE.CaCO₃.BIO
Output range: 60~120 kg/h

Product Description:

3CMJ-50-55-50-Ruihang high performance  frosted film blowing machine

(upper haul-off rotary

Characteristics of the device

Product Overview:

This machine group is used for LDPE, LLDPE, HDPE and other plastic raw materials. It is used in the production of drawstring bagwhich can better meet the requirements of high-performancehigh outputhigh plasticity.

Performance and characteristics:

1. The advanced blown film process solves the problems of high investment cost, high production cost, poor film tension, and inflexible extrusion of frosted film equipment.

2.Compared with the traditional tape-casting process, it greatly reduces product costs and waste caused by switching die head model or other parts.

Optional equipment:

1. High plasticization

2. High output

3. High performance

Technical Specifications
Madel Name3CMJ-50-55-50-Ruihang high performance upper haul-off rotary  frosted film blowing machine
Final product-----
Drawstring bag
Material usedLDPE, LLDPE, HDPE, MLLDPE, other raw materials
Output range60~120 kg/h
Film layerThree to five layer
Screw diameterΦ45-Φ75mm
Screw L/D
Screw Material38CrMoAI
Width1200mm-2100mm (customized according to customer's packaging)
Optional DevicesUpper traction rotation, auto-winder, double section and double receiving
Delivery Time30-60 days
Warranty1 year
Technical AssistanceEngineers available to service machinery overseas
